Scaffolding Components

Scaffolding components are the building blocks of a scaffolding structure. These parts are designed collectively to form a temporary structure that supports tools, materials, and workers during construction, maintenance, repair, and other tasks. Each scaffolding component has a specific purpose, and they work together to offer safety and stability.

Vertical tubes/standards transfer the loads from the scaffold to the base plates, while horizontal tubes or ledgers provide lateral stability. Braces prevent the structure from swaying, while planks create a workspace for workers. Base plates and jacks distribute weights and adjust heights on uneven ground, while guardrails and toeboards prevent falls and ensure workers’ safety.

The main types of scaffolding components are standards, base plates, ledgers, braces, toeboards, guardrails, toe boards, and platforms. The main benefits of scaffolding components are safety, load-bearing capacity, durability, flexibility, and versatility. The main uses of scaffolding components are industrial applications, construction projects, repair and maintenance, and event staging.

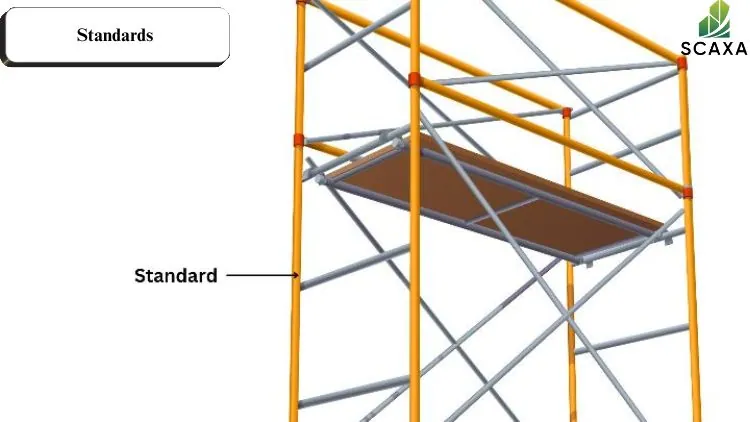

Standards

Standards are integral components of scaffolding. They are vertical tubes that create the backbone of the scaffold framework. These vertical members of the framework transfer the weight of structure, materials, and tools from the structure to the ground.  Standards are made of galvanized steel or aluminum tubes. Galvanized steel can withstand harsh weather conditions and handle heavy loads; therefore, when standards are required for heavy-duty applications, then galvanized steel is used. The length of galvanized steel standards are available in the range of 5 ft to 21ft. Typically, 21-foot-long standards are placed vertically on the ground, and these uprights are the main structural component of scaffolding. On the flip side, aluminum-made standards are suitable when scaffolding is required for light-duty applications.

Each upright is placed 2 meters apart for general scaffolding work like painting or decorating. But standards are placed a maximum of 1.8 meters apart for heavy-duty applications; this distance is called bay length.

When it comes to connecting standards vertically, joint pin systems and pin sockets are used. Joint pins are useful in creating an extension of standards. Standards are connected with a base plate at the bottom. The base plate creates a safe connection between the foundation and standards. The distance between standards is usually determined by the intended load requirement for a specific framework.

Standards are usually fixed in length. But when you need to erect a structure larger than 21 feet, one standard is placed above another through a joint pin that is inserted into an inner tube, locking the uprights together.

For creating a scaffolding bay, you need two pairs of standards. One pair should be placed near the building and known as an inside standard or upright. Another pair will be placed on the opposite side and known as outside standards. You will define the width and length of each bay based on the specific scaffold you need.

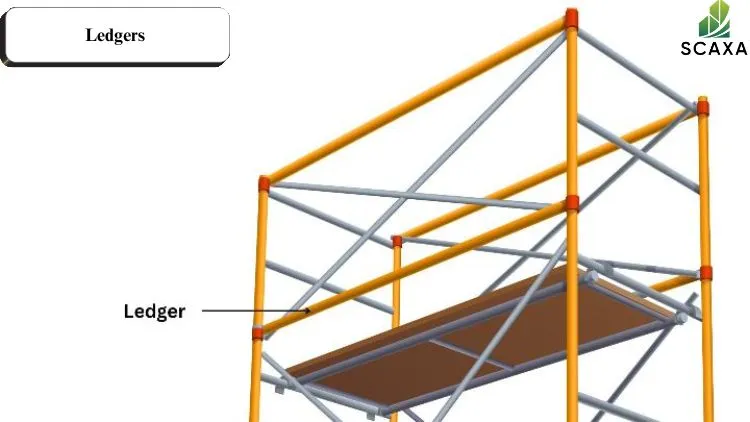

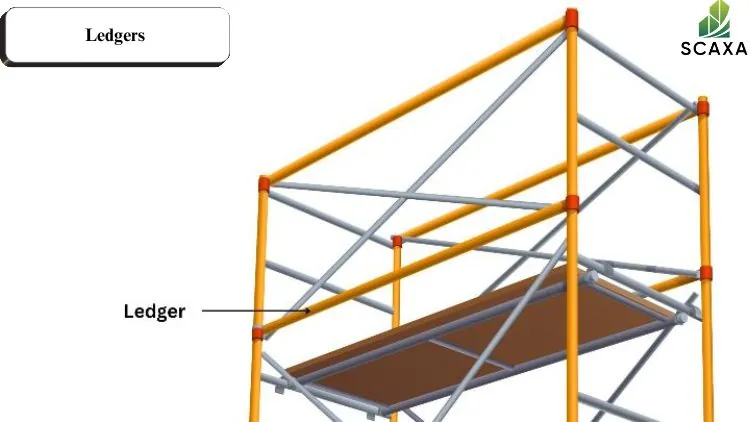

Ledgers

Ledgers are commonly known as horizontal runners, as they are horizontal components of a scaffolding system. They are connected with vertical tubes, otherwise known as standards. Ledgers are crucial for maintaining the scaffold framework’s horizontal stability. They are installed parallel to the ground and secured with standards at varied lift heights. They are useful for even weight distribution.

Multiple bays are connected with ledgers at the front and back sides of the scaffold. Joint staggering is crucial for structural stability and preventing weakness. Joint staggering is a practice that ensures no adjacent ledgers are in the same bay. Sleeve couplers are used to create these joints. The distance between adjacent joints on the same lift should be at least one-third. The lift heights or spacing of the ledger in an independent tied scaffold should be 2 meters and 1.35 meters for the putlog scaffold.

Ledger placements help define the height of the scaffold. Ledger spacing and the total number of levels dictate the overall height of a framework. In front scaffold frameworks, ledgers are placed horizontally and parallel to the structure being worked on. This placement allows the workers to work closely and conveniently with the building.

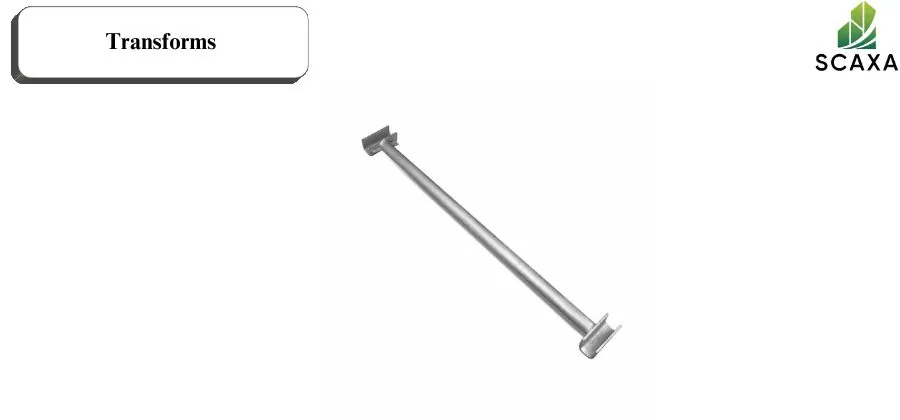

Transoms

Transoms are horizontal members of the scaffolding framework. They are installed perpendicular to the ledgers, offering support and stability to boards and platforms. They ensure that the structure remains stable by distributing the loads. Main transoms are load-bearing transoms positioned close to the standard and work as primary bearers placed in the framework to support the overall weight of the working platform. Intermediate transoms are installed close to the main transoms and provide board support. They are installed strategically at specified intervals so that boards don’t shift due to the weight of materials and workers.

Installing transoms at the right angle to the leaders ensures the proper alignment of the scaffold framework. When a transom must be connected to the ledger for board support, putlog couplers are used to keep the ledgers fixed in place. A swivel coupler is preferred for any other connection angle between scaffolding pipes.

Transom beams are used for heavy-duty applications to bridge larger gaps between ledgers and standards. They enhance the overall strength of the structure and are good at reinforcing other components of the framework. A transom truss is another type of transom with a truss-like structure. It is used for heavy load distribution and increased support. A transom truss can distribute weight evenly across different points in the overall structure.

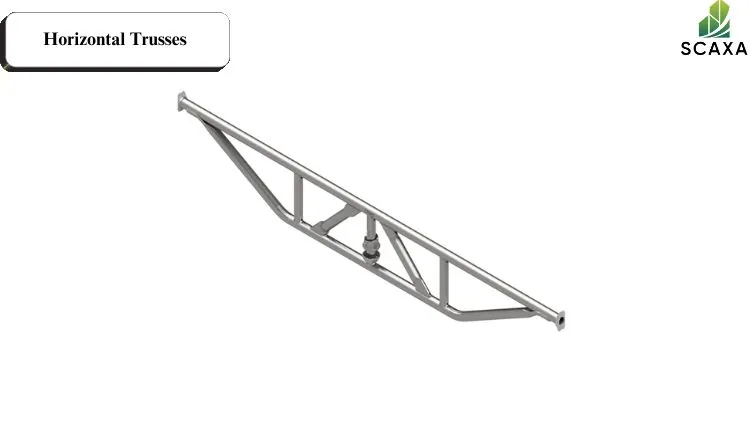

Horizontal Trusses

Horizontal trusses are structural components installed parallel to the ground and connected with ledgers and standards horizontally. The primary function of horizontal trusses in the scaffolding is to distribute weight over ample space and minimize stress on individual parts such as transoms and ledgers. They are used to cover more significant gaps between standards. Horizontal trusses reinforce the horizontal alignment of the scaffold and prevent the structure from swaying. They also protect the structure from uneven loading or heavy wind. They are crucial for heavy-duty applications, especially when a scaffold has specific load-bearing requirements, as they support the platform at elevated heights.

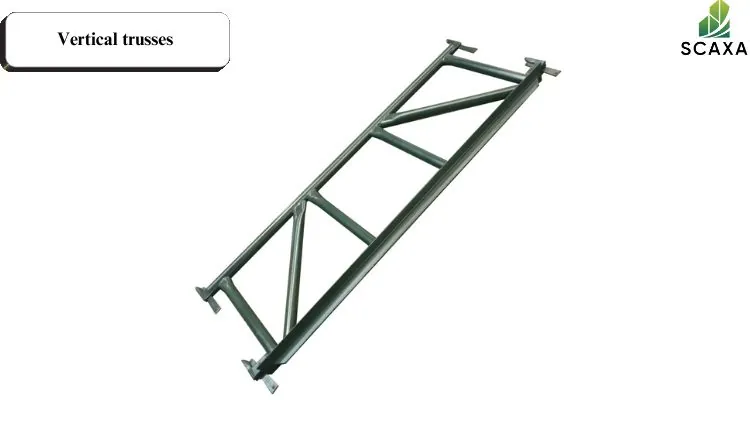

Vertical trusses

Vertical trusses are upright components aligned with the vertical tubes to prevent buckling and handle vertical loads. The strength capacity of the scaffold to bear vertical loads. They make the framework robots and increase their resistance against compression forces. These trusses ensure scaffolds offer multi-level load support and work efficiently across various heights. Vertical trusses are important for scaffolding frameworks created for complex building shapes and uneven surfaces, especially when additional vertical stability is required.

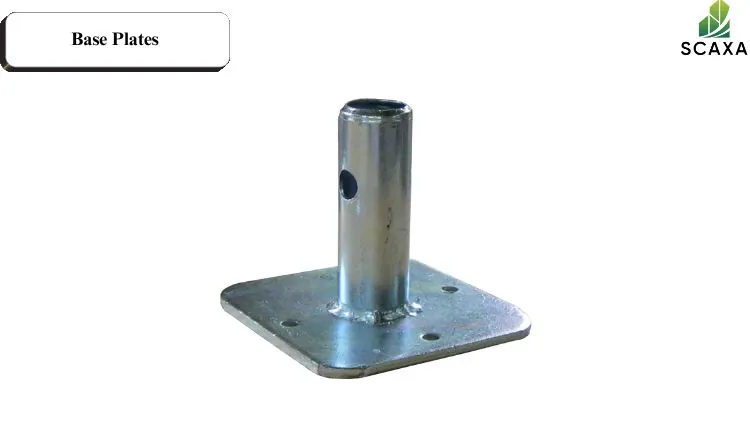

Base Plates

Base plates are flat plates or frames placed at the base of the column. They are essential for boosting the structure’s stability by distributing the column’s weight over a greater area. Scaffold. This footplate is an integral component of different types of scaffolding, such as kwik stage scaffolding, scaffolding frames, cup lock scaffolding, tube, and clamp scaffold. Socket base plates work as sockets for universal jacks. Uprights of scaffolding systems are mounted on a steel base plate. The minimum thickness of this steel plate should be 6mm, and the size should be 150 mm x 150mm. It is mandatory for all scaffolding structures when you need to install a framework on a concrete surface or any other ground. A mudsill is set under the scaffold base plate, and the primary purpose of this site is to distribute the load over a large area. Its presence reduces load distribution on the ground under the base plates.

Three types of base plates are:

1. Angle flat
2. Ribbed or spigot
3. Flat base.

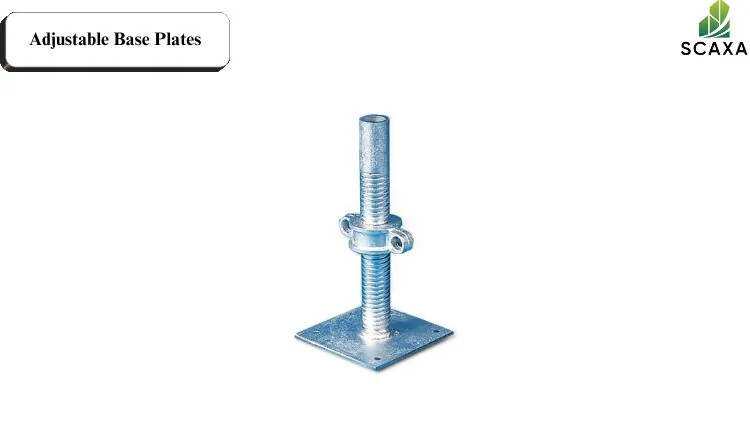

Adjustable Base Plates

Adjustable base plates are versatile components of scaffolding systems. They allow workers to stabilize the framework on uneven ground or sloppy surfaces. They have all the features of a traditional baseplate with an additional adjustable mechanism. The adjustable threaded shaft of the base plate makes it easy to adjust the scaffold height. Adjustable base plates also feature a socket base and footplate like a traditional base plate. Foot plates are helpful in load distribution, while socket bases tightly hold the standards. Universal jacks are used alongside adjustable base plates to make them adaptable to different scaffold types and configurations. Adjustable base plates let you adjust the height of each scaffold leg until the point where the whole structure is stable on an irregular round. These plates are mandatory for use on uneven terrain.

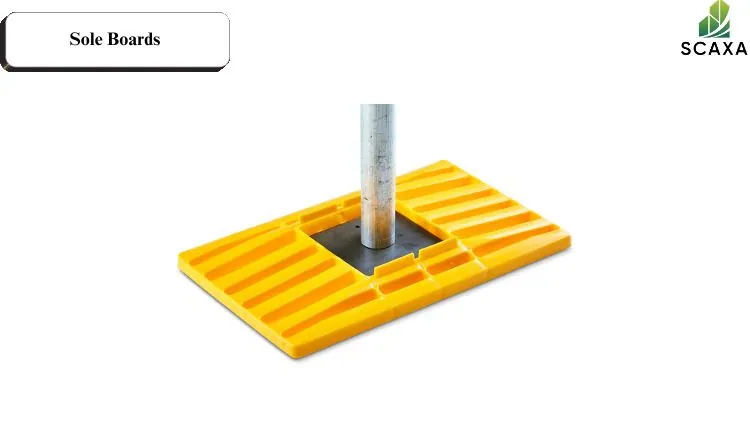

Sole Boards

Sole boards are wooden planks used under base plates in a scaffolding framework. They are essential to the scaffolding system as they maintain safety and stability. These boards spread the weight of the scaffold and its load over a wider area. When scaffolding systems need to be installed on soft soil or uneven terrain, sole boards will reduce concentrated pressure points and won’t let the structure sink or become unstable. Sole boards are rectangular and can withstand the load on the scaffold. The exact dimension of the boards depends on the size of the scaffold and the weight it will support. Sole boards improve the stability of the scaffolding system and ensure that the framework stays compliant with safety standards.

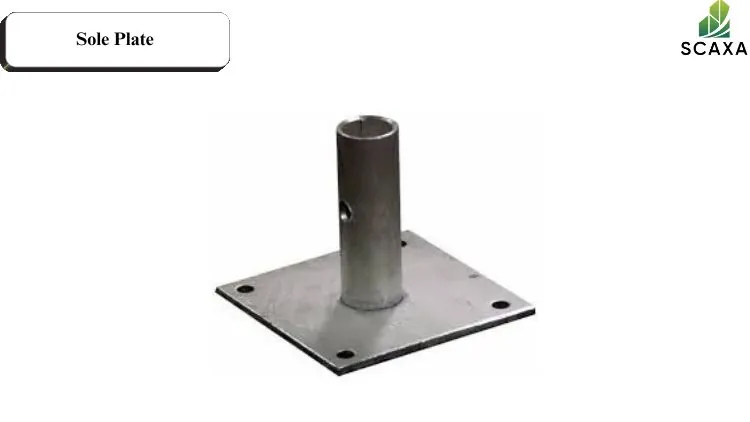

Sole Plate

A sole plate is a timber spreader designed to distribute the load from a base plate to the ground. It provides lateral stability to the scaffold. Other names of sole plates are the mud sill, sill plate, and base plate. The sole plate is the first piece of wood placed on the foundation of the basement masonry. A  timber or metal barrier distributes weight from the standards to the ground, preventing the structure from sinking. The minimum width of the sole plate should be 200mm, while its thickness should be 25mm. The complete area of the sole plate should not be less than 1000 sq.cm. It should provide support to two vertical pipes and must extend beyond these pipes. There is no need to use a timber soleplate if you erect a scaffold on a concrete floor or other firm ground. The best thing about sole plates is that they can be erected on different ground conditions, such as gravel, loose soil, and compact surfaces. Sole plates ensure compliance with safety regulations as they offer stable footings for vertical pipes and distribute loads effectively.

What is the Difference between sole plate and base plate in scaffolding?

Here is a table explaining main points of difference between sole plate and base plates such as structure, installation, material, and purpose.

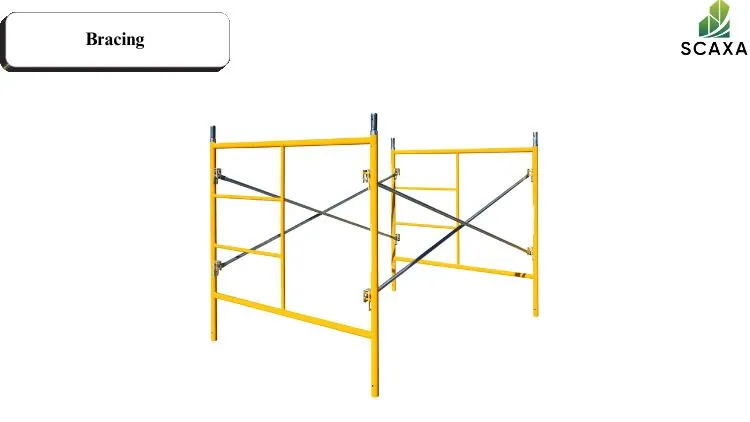

Bracing

Bracing is a crucial component of scaffolding as it enhances the safety and stability of the framework. The structure becomes unsafe and unstable without braces, which offer increased stability, proper alignment, and rigidity to the entire framework. It allows the structure to provide support to loads during construction, maintenance, and other tasks.

Two types of bracing are as follows:

Façade Bracing

Facade bracing is installed on the face of the scaffold; it runs parallel to the structure of the building under work. It prevents the framework from swaying and enhances lateral stability. Facade bracing is placed alongside the frame length in a diagonal position and is usually fastened on every platform. Facade braces should be installed on the first, last, and fourth bays. The maximum space between braced bays should be three bays. Facade bracing must be fixed to the scaffold’s long face parallel to the structure face and secured to outside standards. You can run bracing at the angle of 45 degrees to face the structure at its full height, or another option is to run it in a zig-zag fashion at full length. Bracing must be secured with an extended transom through right-angle couplers or placed with standards through a swivel coupler. Ensure that transoms are secured through right-angle couplers when you secure facade bracing.

Cross or transverse Bracing

Cross bracing is a diagonal member of the framework and is installed in X pattern or the diagonal position. This configuration distributes the load effectively throughout the framework and resists back-to-back movement or racking. It runs diagonally between the inside ledger and is usually fixed through a swivel coupler to the outside standards. It boosts the firmness of the framework. To increase the stability of the structure, cross bracing must be added to every set of standards and every other bay.

Bracing must be fixed to every third pair of the standard if the bay length is 1.5 m or less. Bracing must be secured from the inside ledger to the guardrail below to brace every pair of standards.

Sometimes, workers need clear access to base lifts of tubes and fitting scaffolds. In that scenario, cross braces aren’t used on the base lift, but the first lift should not exceed 2.7 meters or must be braced at knee level. Without cross braces, the scaffold’s load capacity will decrease.

Transverse braces are horizontal braces that secure with the transoms and standards across the width of the scaffold. These braces are essential for maintaining proper alignment of the structure and prevent the framework from collapsing or twisting.

Ledger Braces

Ledger bracing is always used in tubes and fitting scaffolds. You need to install braces on alternative pairs of standards so that they create a complete series of triangles from the bottom to the top of the structure. You need to place braces from ledger to ledger and standard to standard. Each pair of standards is braced from the inside ledger to the guard rail of the lift below, which offers quick accessibility to the boarded lift.

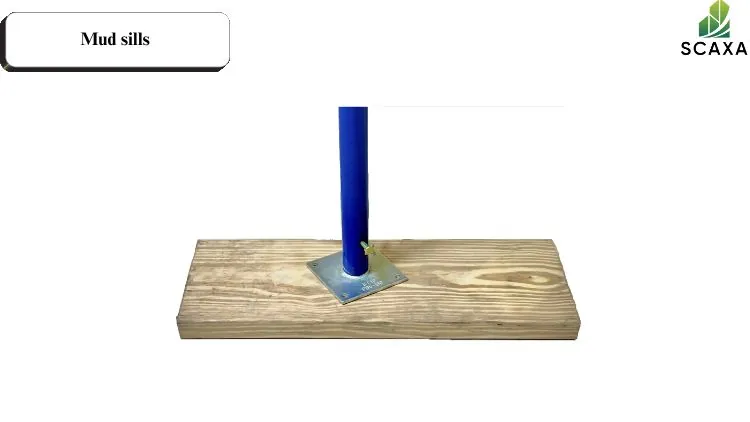

Mud sills

A mudsill is an integral component that offers foundational support to the entire scaffolding framework. It is made of a solid metal plate, a wooden plank, or any other robust material. A mudsill’s plus point is that it distributes load evenly across broad areas on the ground and proves useful when scaffolding needs to be erected on soft or uneven ground. Mud sills are positioned beneath base plates and prevent the structure from sinking and tilting.

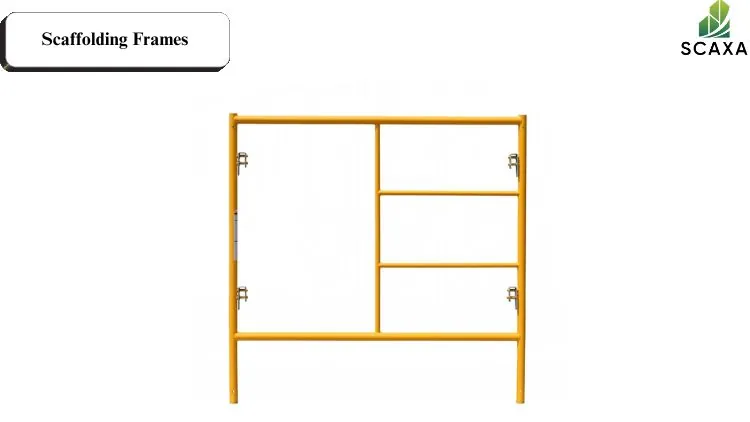

Scaffolding Frames

Scaffolding frames are prefabricated, modular frames made of steel or aluminum. Different kinds of scaffolding frames are joined together to create a complete framework of scaffolding structure. The different components of scaffolding frames are vertical frames, cross braces, base plates, mud sills, couplers and pins, planks, guardrails, and toeboards. Scaffolding frames are easy to assemble and dismantle.

Three common types of scaffolding frames are walk-through, ladder, and mason frames.

Walk-through frames are designed with a rectangular open shape, offering workers easy passage. Whenever a project requires continuous movement, walk-through frames prove helpful.

Ladder frames have integrated ladders, so workers can easily access different scaffold levels. These frames are valid for projects where workers need easy access to other areas.

Mason frames are commonly used for masonry tasks; they offer sturdy platforms for workers to handle heavy loads of brick and mortar.

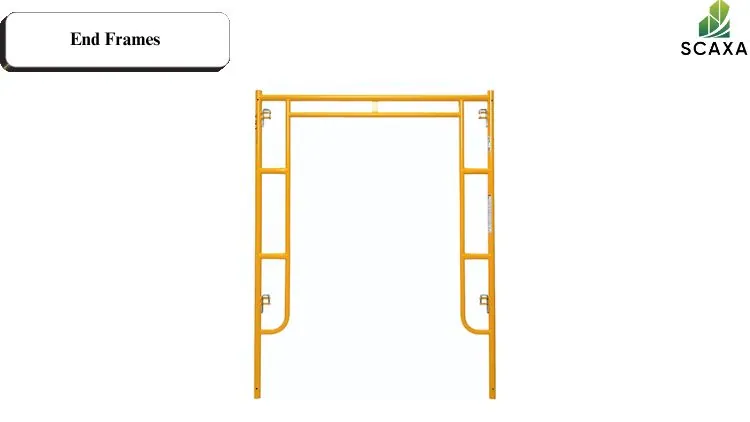

End Frames

End frames are specific types of scaffolding frames designed to create the vertical structure of the scaffolding system. They are placed at the ends of scaffolding bays to enhance structural stability. They work as access points or ladders in specific scaffolding designs and are also used to connect other components in the overall framework. The upright poles in the end frame support the scaffold platform’s load and transfer it to the ground. End frames also serve as attachment points for planks and cross braces. Some end frames are designed with built-in ladder rungs so workers can easily access higher levels of the scaffolding system. Coupling pins are located on the tops of end frames and used to align and secure additional scaffolding frames stacked on top. The modular design of end frames opens room for customization and provides structural support to the weight of material, workers, and equipment. When combined with cross braces, end frames maintain the shape and alignment of the overall system. However, when you use end frames, you must ensure they are placed on even ground or mud sills—regular inspection for cracks, rust, and deformation. Permanently fasten them with cross braces to prevent structural collapse or shift.

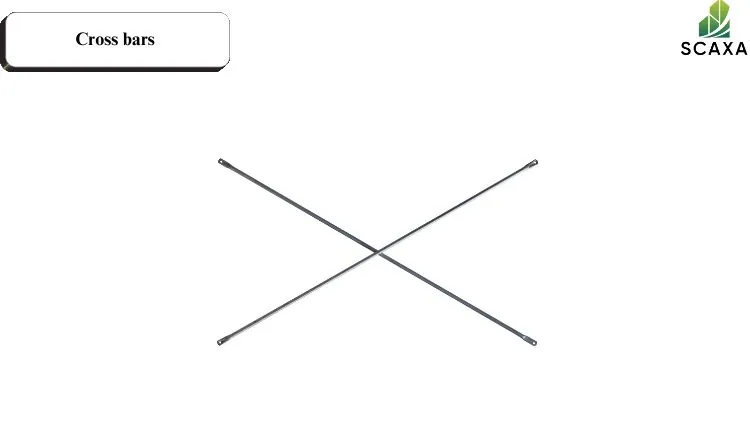

Cross bars

Cross bars are diagonal members of the scaffolding structure. They are connected to vertical members to enhance structural stability and distribute the load evenly while preventing swaying. Cross braces are straight or slightly curved, joined at the central point to create an X-shape. They have hooks and clamps at the end for secure attachment to vertical frames. Cross bars are highly durable as they are made of steel or aluminum. They make the scaffolding structure rigid and let it retain its shape during use. Besides, it offers diagonal reinforcement so the scaffold doesn’t move sideways. They make the scaffolding frame easily assembled. Since they are made of durable material, cross bars are highly resistant to wear, corrosion, and bending.

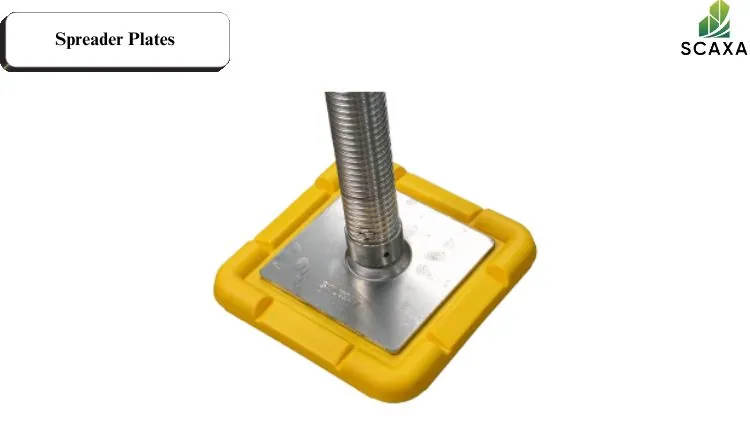

Spreader Plates

Spreader plates in scaffolding enhance stability and even load distribution of the overall scaffold structure, especially on unstable and uneven ground. They are placed beneath base plates or legs and spread the load over a large area. The primary purpose of using these plates is to spread the risk of structure failure and accidents. Spreader plates are made of heavy-duty plastic or steel; they can withstand heavy loads without deformation. Many regulations mandate spreader plates to stabilize scaffold structures on challenging ground such as mud, sand, or grass.

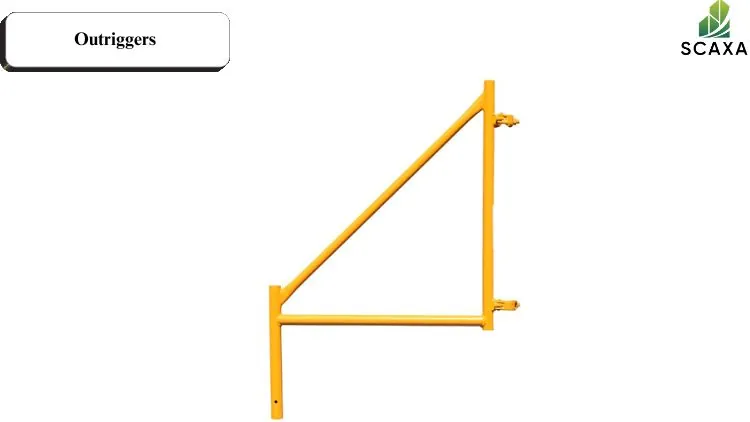

Outriggers

Outriggers are horizontal or angled extensions connected to the scaffold base to increase base dimension and stability. They are helpful for freestanding or mobile scaffolding systems. They are mandatory to use when the height-to-width ratio of the scaffold is more than the stability threshold,  as per safety guidelines set by OSHA. Outriggers extend the footprint of scaffolding and protect the framework against lateral movement, uneven loads, and high winds. It prevents mobile scaffold structures from overturning by integrating locking mechanisms. They are made of steel or aluminum and are fitted with adjustable legs or wheels. Wheels enhance mobility, while legs are used to level the scaffold base precisely. Outriggers are helpful in projects where tall scaffold structures are used or cannot expand the base area.

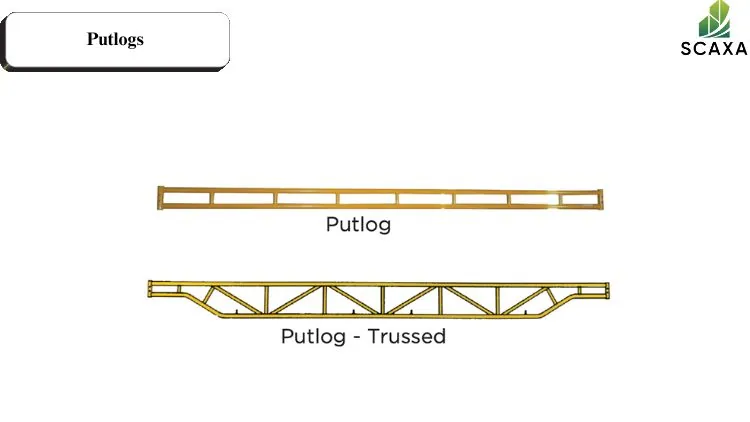

Putlogs

Putlogs are integral horizontal components of scaffolding designed to connect scaffold structures to adjacent buildings or walls to offer additional support to the working platform. They are steel or timber beams whose one end is flat and rests securely in holes made in the walls, while the other is connected to a ledger or transom in a scaffold structure. Putlogs are key components of traditional scaffolding, also known as putlog scaffolding, used for masonry work and construction. Putlogs are lightweight, easy to install, and reusable. Their anchoring ability reduces the risk of lateral movement and tipping. However, putlogs are only helpful in traditional scaffolds as they require wall holes or support for setup.

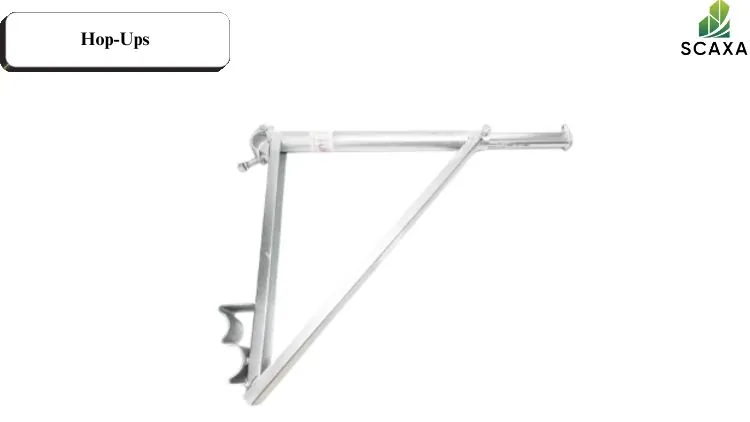

Hop-Ups

Hop-ups are small platforms used to extend working space in a scaffolding system. Workers can access out-of-reach areas on the leading platform through hop-ups. They are used for tasks where additional height or working space is required. It eliminates the need to rebuild the primary structure of the scaffold.  Hop-ups are small horizontal frames or brackets that feature a cantilever design. You can extend the platform outward or upward to get extra support for platforms or planks. They are made of high-strength steel or aluminum. Therefore, hop-ups are durable and unlock heavy load-bearing capacity. You can fix horizontal and vertical members of the scaffold through couplers or clamps. Hop-ups are available in various sizes, like single-plank extensions or multi-plank setups, so it’s easy to adjust height and angle per your workspace or project requirements. They are equipped with guardrails and non-slip surfaces to reduce the risk of slipping and ensure worker safety.

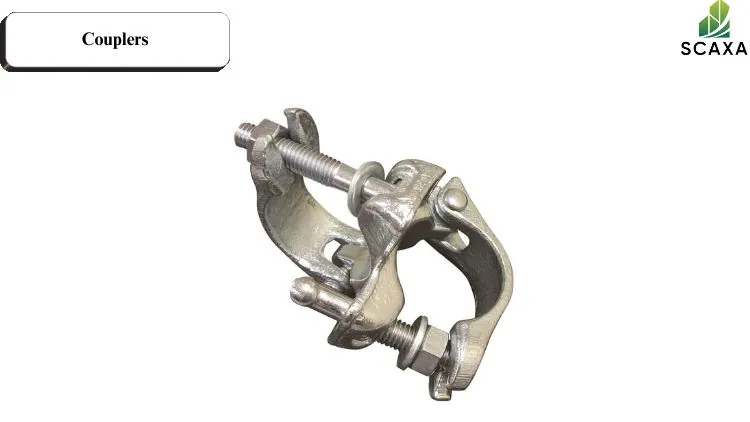

Couplers

Scaffold couplers are metal tube fittings that connect scaffold tubes and ensure structural integrity. Scaffold couplers are foundational components of tube and coupler-scaffolding. They are basic fittings that are used as accessories for prefabricated scaffolding systems. Couplers can be either load-bearing or non-loading-bearing. Right angle couplers, swivel couplers, adjustable fork heads, adjustable base plate jacks, and 5 KN brace couplers are load-bearing components. Expanding joint pins and toe board clips are non-load-bearing couplers.

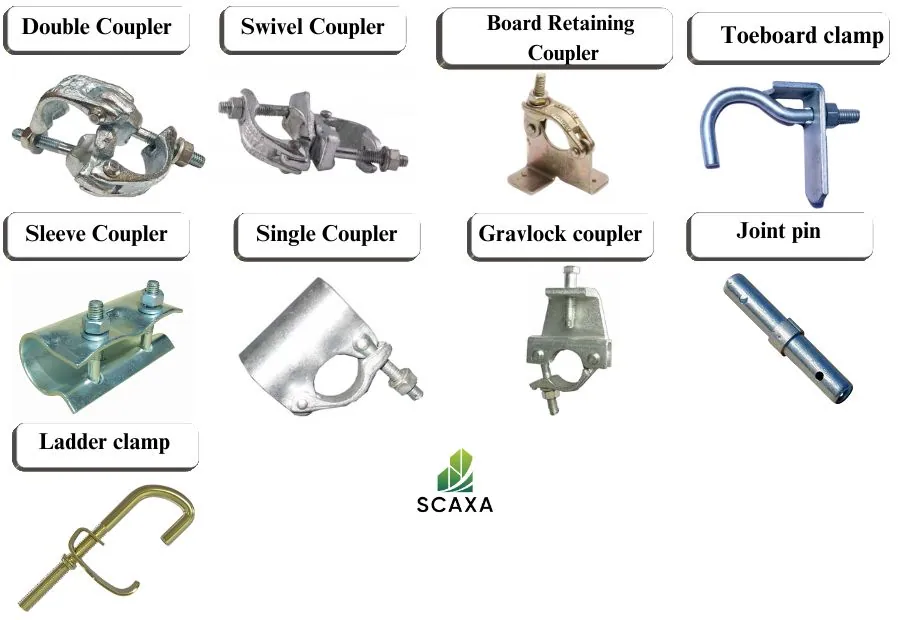

What are the types of Couplers?

Double coupler

A double coupler is designed to join two scaffold tubes with an outside diameter of 48.3mm at right angles. It is used to resist compression loads or tension.

Swivel coupler

A swivel coupler is designed to join a scaffold tube with an outside diameter of 48.3mm at any angle. A swivel pine is interconnected with each half of a coupler. Swivel couplers are versatile fittings that connect two scaffolds at any desired angle. They are useful for complex and unusual scaffold designs, as they offer flexibility. Swivel couplers are durable and can withstand harsh weather conditions and heavy loads. They are designed with bolt-and-nut mechanisms that prevent slippage during use and offer a firm grip on the tubes. They are ideal for non-standard connections, allowing you to fix tubes at adjustable angles and when a scaffolding project requires adaptive design.

Sleeve Coupler

Sleeve coupler makes end-to-end joining of scaffold tube standards possible.

Single Coupler

Single coupler secures transoms and putlogs to ledgers. This lightweight fitting doesn’t have a load-bearing capacity. Another name for a single coupler is the putlog coupler. It offers a secure connection of horizontal components

Gravlock Coupler

The Gravlock coupler secures two scaffold tubes in a fixed position at a 90-degree angle. This heavy-duty coupler adds strength and durability and has load-bearing capacity.

Board Retaining Coupler

The board retaining coupler is designed to secure scaffold boards fixed in their place and prevent them from tipping and slipping. These couplers offer safety in conditions where boards are at risk of dislodging and also in windy weather scenarios.

Toeboard Clamp

Toe board clamps are fittings that secure the toeboard to a scaffolding structure.

Joint pin

A joint pin is a connector fitting that offers a vertical end-to-end connection of scaffold tubes. It provides a secure and continuous structure where tubes can be extended without overlapping.

Ladder clamp

Ladder clamps are used to integrate a ladder into a scaffold. It prevents movement or slipping of the ladder and offers a stable connection for safe ladder access.

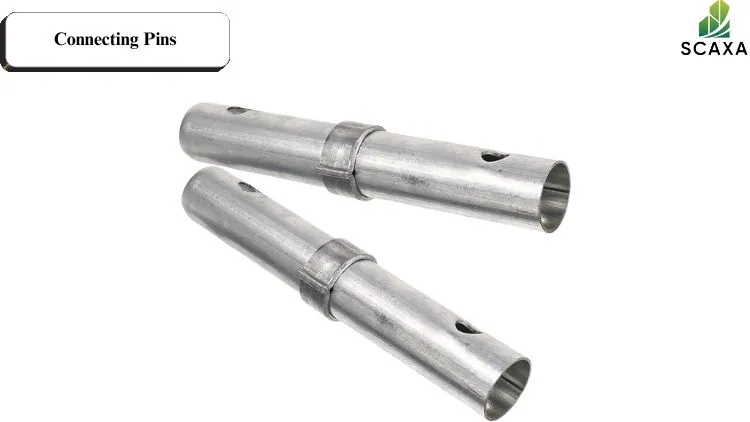

Connecting Pins

Connecting pins are small cylindrical components that connect two scaffold tubes from end to end. There is no need to overlap tubes; connecting pins can create a continuous horizontal and vertical alignment in a scaffolding structure. Inserting these pins into the scaffold tubes’ ends allows you to create a secure connection without compromising structural integrity. Connecting pins are commonly used whenever you need to extend the height or length of the scaffold.

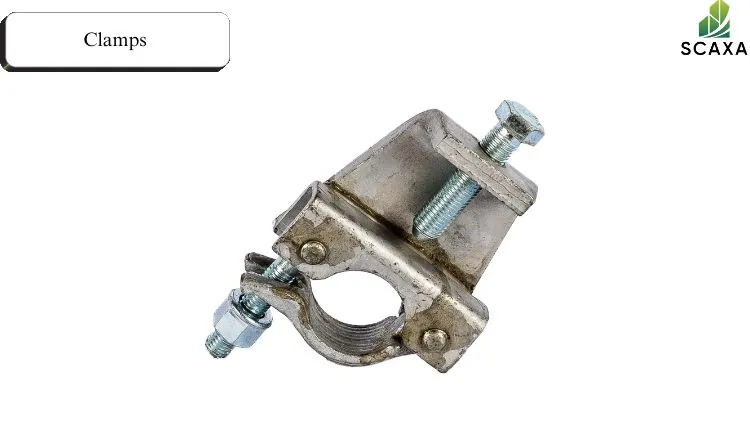

Clamps

Clamps are crucial fittings used to secure scaffold tubes together at a specific angle or position. There are different clamps, such as swivel clamps, putlog clamps, right-angle clamps, etc. Each clamp is used for a particular purpose. These fittings ensure that tubes are joined tightly and don’t displace or move during use.

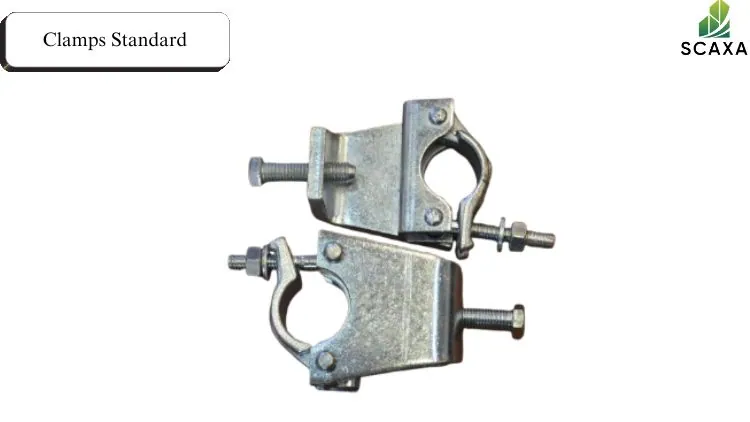

Clamps Standard

Clamp standards refer to guidelines regarding scaffolding clamps’ performance, durability, and safety. These standards provide details of load-bearing capacities, design specifications, and material quality so that clamps can withstand the stress of construction activities. Following these safety regulations regarding clamp standards is essential to maintain system integrity.

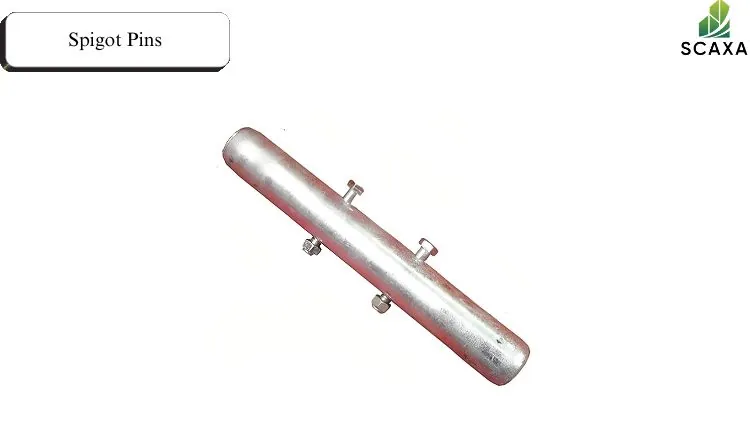

Spigot Pins

Spigot pins are crucial components of a modular scaffolding system. They are designed to connect vertical tubes or standards end-to-end safely. These pins are interested in the hollow end of tubes and are used to combine tubes together. Regarding the precise alignment of vertical components, spigot pins ensure quick assembly.

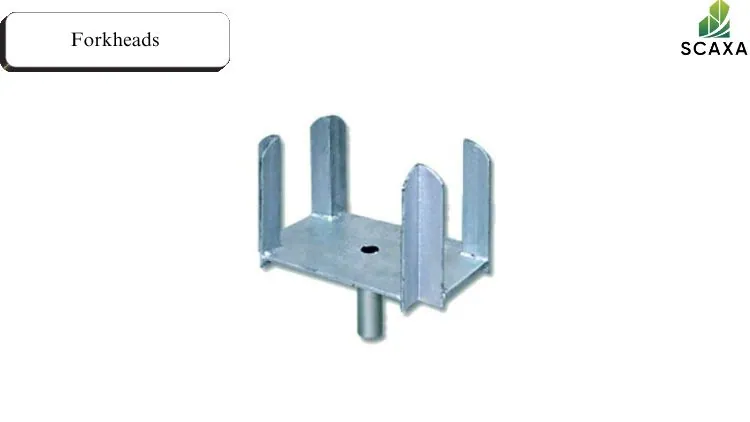

Forkheads

Forkheads are adjustable components of scaffolding. These u-shaped jacks provide short to horizontal members of scaffolds or beams. The U-shape design of forkheads holds the beam securely in place. This fitting is placed on the standard and secure scaffolding tubes in their place. Forkheads are crucial when you need additional stability and support for formwork. They ensure the safe distribution of loads during the construction process.

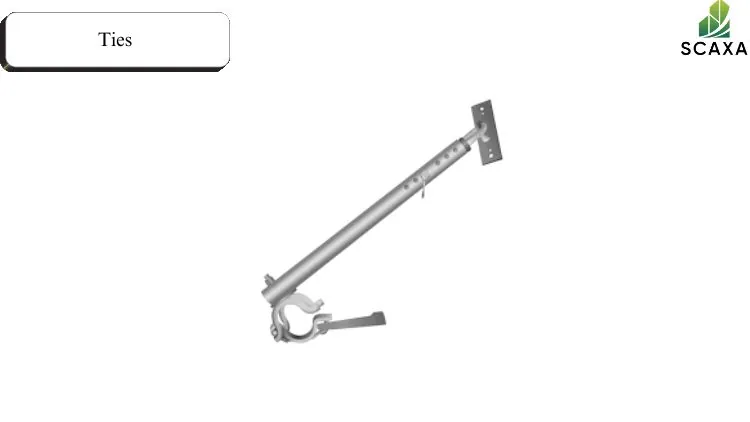

Ties

Ties are structural components that secure scaffolds with a building or stable structure. They ensure stability and prevent collapse. Ties perform dual functions. First, they offer stability to the entire scaffold, not letting it fall towards or away from the structure building. Second, Ties also increase the lateral stability of individual scaffold standards and don’t let them buckle when the load on the scaffold increases.

You can have different types of ties in the market, but always pick non-moveable ties because they are easy to maintain and offer few interference challenges. Non-moveable ties are usually drilled into the structure at specific anchor points, and you don’t need to move them until it’s time to dismantle the scaffold. Always ensure that ties are attached to the scaffold as close to the node point as possible to enhance stability. Choose ties that resist movement toward or away from the building or prevent buckling. When a tie doesn’t resist movement, then you can use supplemented measures such as tubes butted against the building.

When it comes to installing ties, you need to secure them to both ledgers and both standards or simply follow manufacturer recommendations. Ensure that ties are attached to the ledger so that they are not more than 300m apart from a standard.

The vertical distance between tie installations depends on the scaffolding design. You need to check the manufacturer’s instructions when using ties in a system scaffold. Don’t erect a scaffold with a width of 1.25 m higher than the manufacturer’s instructions or a height of a maximum of 4m higher than the highest lines of ties unless you have a specific scaffold design to follow.

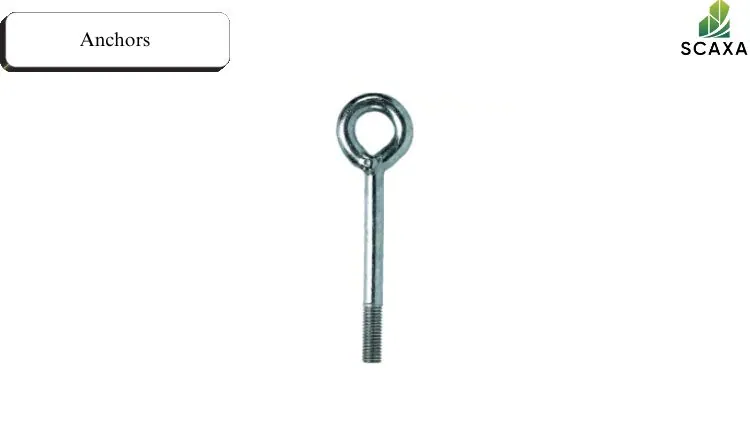

Anchors

Anchors are devices used to secure scaffolding structures to a building or wall. They offer top-notch stability and safety in load-bearing systems. Anchors distribute the weight of the scaffold and ensure that the structure doesn’t collapse. High-strength materials such as steel or alloy are used to form anchors for scaffolds. Anchors are usually adjustable; you can adjust them per wall thickness and scaffold configuration. Four types of anchors are:

1. Through ties: Through ties are suitable for high-rise applications. The anchor passes through the door opening or window and is secured, on the other hand, through brackets or plates.
2. Expanding anchors: Expanding anchors are suitable for solid walls and structures. Holes are drilled in concrete or masonry structures, and anchors are installed into pre-drilled holes, which are expanded to secure the scaffold.
3. Ring Bolts: Ring bolts are fixed anchor points that offer reliable anchor solutions.
4. Resin anchors: Resin anchors are ideal for irregular surfaces or weak structures where you can’t do mechanical fixing. You can use chemical adhesives to bond the anchor to the structure.

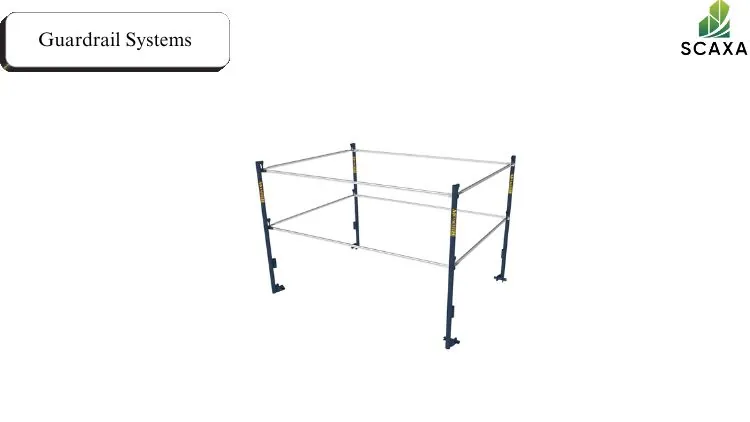

Guardrail Systems

A guardrail system is an essential safety component of a scaffold framework. It must be installed on a scaffold where workers must work at heights over four feet. The guardrail system must be installed on the ends and sides of the platform. This system comprises top rails, mid rails, posts, toeboards, handrails, and guardrail connectors.

As per OSHA standards, the height requirement for top rails is 36 to 45 inches above platform surfaces. This rail must handle 200 pounds of weight applied outward or downward. Midrails must be installed midway between the top rail and the platform surface. Midrails must withstand 150 pounds of outward and downward force.

Guardrails must be installed on every platform and must withstand force of 200 pounds. The minimum permitted height is 950mm/37 inches, while the maximum height for the guardrail is 47 inches or 120mm. Guardrails must be installed inside the standard with right angle or double couplers, while two boards must be placed inside the uprights. Fit toeboards on the open sides of the working platform.

A handrail is a horizontal safety component installed at a height alongside walkways or staircases. Workers can ascend or descend scaffolding systems by holding a handrail and gripping for balance and stability.

The guardrail system’s essential purpose is to prevent the accidental fall of persons, tools, and materials from scaffold edges. It also protects ground workers against personal injury.

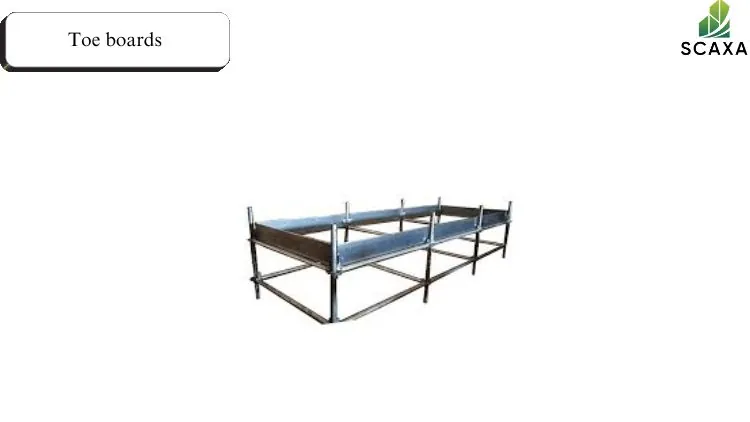

Toe boards

Toeboards must be installed on a working platform. They are crucial safety features of scaffolding platforms as they prevent the dropping of materials and tools. Toe boards must be securely fastened more than ¼ inches above the platform. Make sure you secure toeboards to platform edges. They must withstand at least 50 pounds of force applied outward and downward. Solid material or mesh must be used to create toeboards. The mesh opening should not be more than one inch. Place toeboards inside of uprights to prevent falling materials. The minimum height of toeboards for scaffolding platforms is 150mm or 6 inches. You need to fix toeboards to all exposed edges with the risk of falling falling material. The gap between toeboards should not be more than one inch or 25mm unless at access points.

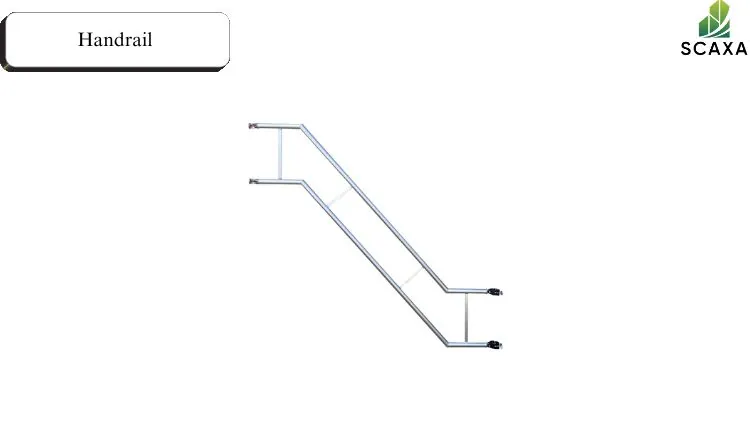

Handrail

A handrail is a horizontal safety component installed at 34–38 inches (86–97 cm) above the platform alongside walkways and staircases. It provides a firm grip to workers who can hold the handrail while climbing or descending from the scaffold. It offers balance and stability while working at heights. Handrails are made of steel, wood, or aluminum. The material of the handrail is selected based on environment, durability, and strength factors. A handrail is designed to offer a secure and comfortable grip and is 1.25 — 2 inches (3–5 cm) in diameter. The handrail must withstand 200 lbs or 90 kg force applied from the side to ensure it is safe for workers. It is installed continuously across the entire length of platforms, walkways, and staircases; no gap should be there so workers can have consistent support. A handrail works as a top rail with a firm grip and all protection in a guardrail system. The handrail must not have sharp or protruding edges. Many scaffolding structures are equipped with handrails to ensure workplace safety and accessibility while staying compliant with safety standards.

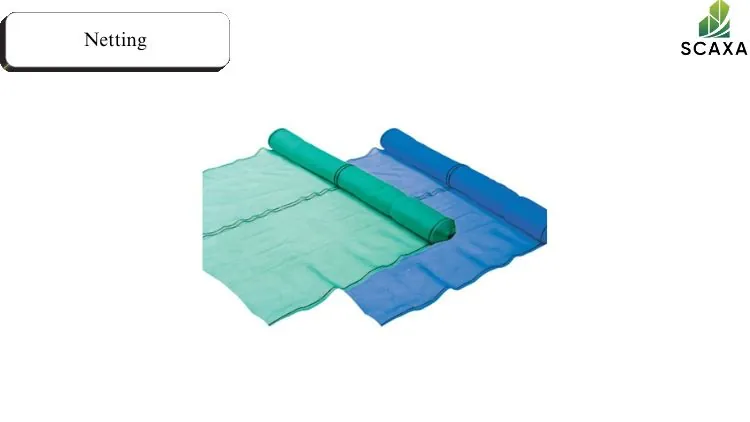

Netting

Netting is a protective net installed around or on the scaffold structure.  It is made of high-density polyethylene or durable material and can withstand harsh weather conditions and ultraviolet rays. They are an integral part of the fall protection system as they prevent tools, materials, and debris from falling off, reducing the risk of personal injury. Commonly, netting is installed on scaffolds to contain dust and debris and prevent their spread in the surrounding areas. There are different forms of scaffold nets, such as:

• Barricades that keep workers out of dangerous areas
• Erected screens between the toeboard and handrails.
• Debris nets that catch debris or material before it hits the ground
• The canopy provides security and visibility and protects ongoing work and material from theft or vandalism.

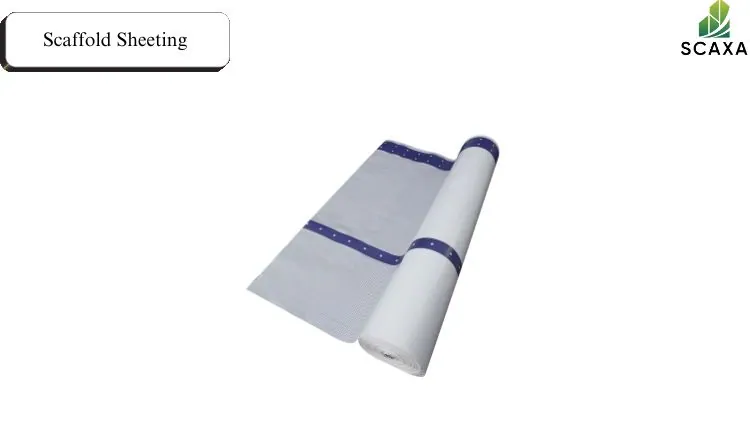

Scaffold Sheeting

Scaffold sheeting is a protective cover installed around scaffolding structures. Sheets are made from durable materials such as reinforced mesh, polyethylene, and PVC. To meet the safety requirements on a site, some contractors need to install scaffold sheets with fire retardant properties as they reduce the risk of fire on site. Standard sheeting is general-purpose and is usually lightweight. These sheets reduce the risk of material or tools falling from the scaffold. These sheets limit visibility and offer privacy and weather protection.

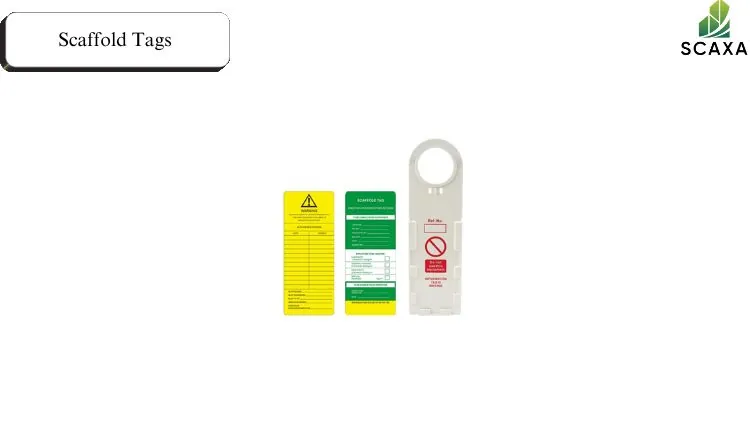

Scaffold Tags

Scaffold tags are a crucial part of scaffold safety management as these tags communicate the safety status of scaffolds to inspectors, workers, and other on-site personnel. These tags provide clear-cut information on whether or not the scaffold is safe to use. Here are three types of scaffold tags:

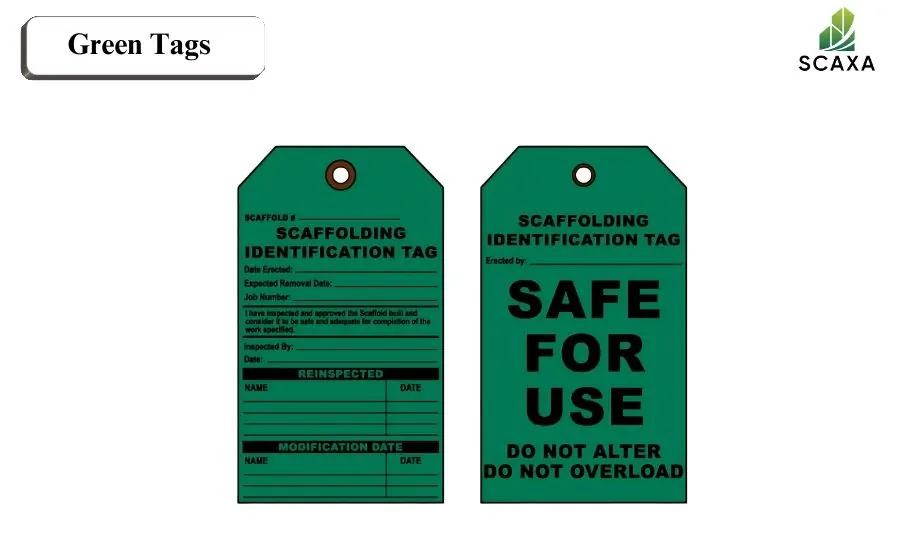

Green Tags

Green Tags indicate that the scaffold’s structural components have been inspected thoroughly and are safe for use. This tag provides details such as safety instructions, the name of the qualified inspector, and the inspection date. Once a scaffold structure is erected and passes safety inspection, an inspector places a green tag on it.

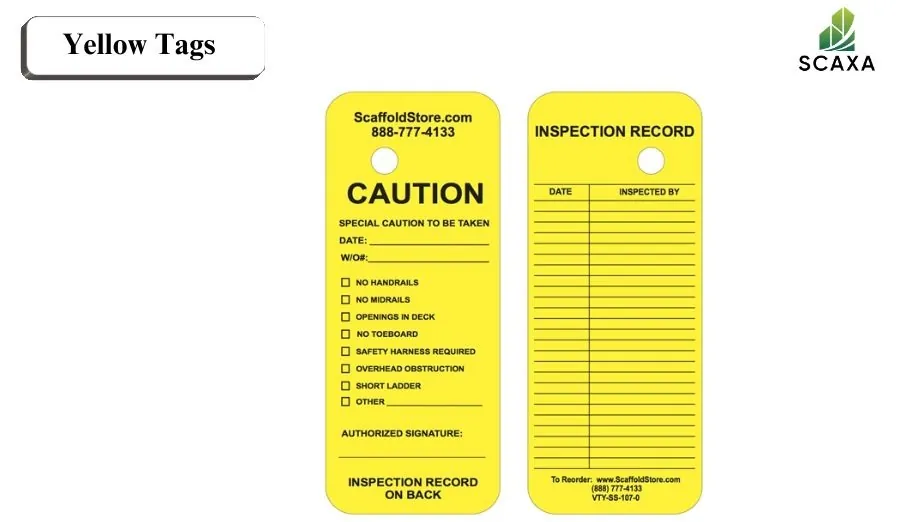

Yellow Tags

Yellow tags communicate the message ‘caution/restricted use’ to inspectors and workers. They showcase that the scaffold is partially complete or has some restrictions. You can find conditions for using scaffolding or accessing it with personal safety equipment on this tag. Yellowtags alert users to use scaffolds but under certain conditions or caution.

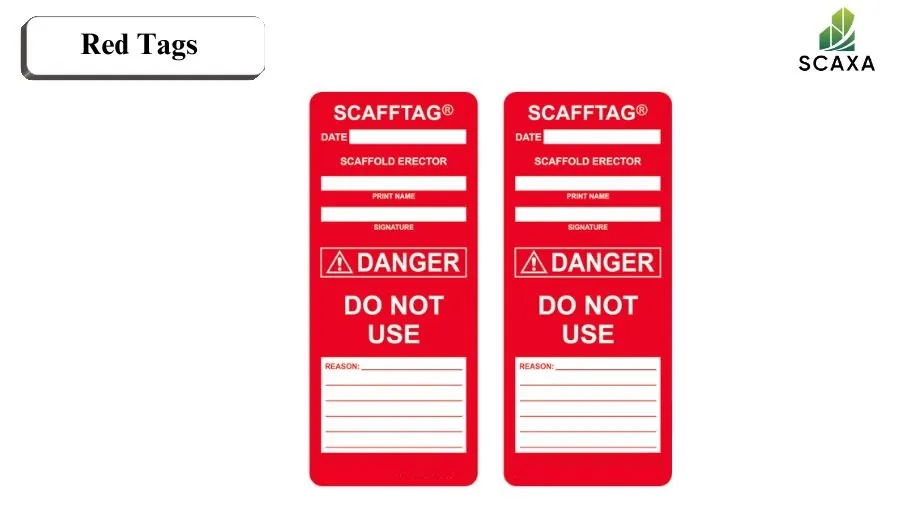

Red Tags

Red tags indicate that scaffolding is unsafe and should not be used. They mean the scaffold is incomplete or damaged and may require adjustment, repair, or changes. Red tags are prominently placed on scaffolds to remain visible and prevent unauthorized use.

Scaffold tags are placed at access points and visible to everyone who tries to use a scaffold. These tags reduce accident risk by clearly communicating the current status of the scaffold. Scaffold tags also ensure that all workers understand the condition of the scaffold and prevent confusion.

Here are some safety provisions regarding scaffold:

1. A scaffold shall not be used unless it has been inspected by a qualified and authorized safety engineer or scaffold inspector. Weekly scaffold inspection is a must.
2. Don’t use scaffolding after any severe weather condition that damages the structure or after any modification to its structural components.
3. All scaffolding inspections should be recorded in the scaffolding register and on the scaffold tag on the day of the physical inspection.
4. When a scaffold is approved as safe, a scaffold inspector places a Green tag at each access point, so scaffold users can see it is secure.

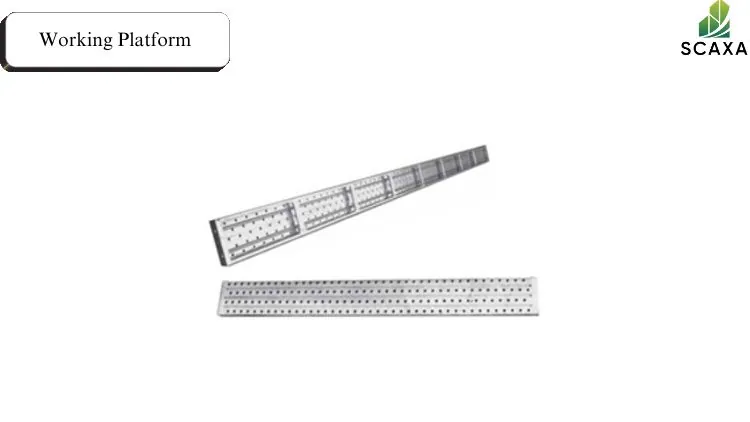

Working Platform

The working platform is a temporary elevated surface that offers workers safe passage along the platform. It should be wide enough to allow workers to pass between the side of the platform and stored material. The contractor must maintain a clear passageway of around 450 mm wide. To avoid trip hazards, you need to keep this platform free of waste material. The working platform should be strong enough to resist the loads. High wind load usually disrupts the system, so contractors must inspect the working platform and risk assess that it can withstand harsh weather conditions.

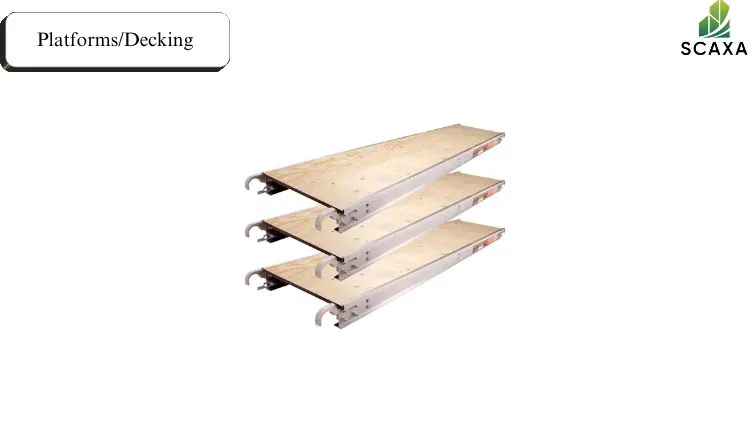

Platforms/Decking

Platform/decking is made of manufactured wood, aluminum, solid-sawn wood, or steel. There is a need to use scaffold grace solid-sawn lumber to create a scaffold platform. Whenever a plank is used for mud sill, it should be used again as a deck. Use a platform fully planked or decked whenever possible. The space between the upright and the last plank should not exceed 9 1/2 inches. The space between the planks should not be more than one inch unless it’s required for obstruction.  The general width of the platform and walkway should be 18 inches. Fall protection is not necessary if a platform is not more than 14 inches from the face of the work, as the face of the work serves as a fall protection system.

Whenever you install a platform, make sure that the end of every platform is restrained or cleated ends with hooks so that it doesn’t accidentally. It must extend at least six inches from central support. When planks are 10 feet long or less, their maximum extension should not be over 12 inches. When planks are longer than 10 feet long, the maximum extension from the centerline of support should be 18 inches. In case platforms are overlapped to form a running scaffold, then these support overlaps should be placed over support and must not be less than 12 inches unless you secure overlapping together.

The tripping hazards of platforms can be reduced by creating a straight line from the ends of the top layers of the platform. The platform shouldn’t have a saw-toothed edge as it often leads to tripping hazards. The defects of wooden platforms must not be kept hidden through painting. But you can treat them with fire-retardants, slip-resistant finishes, and clear preservatives.

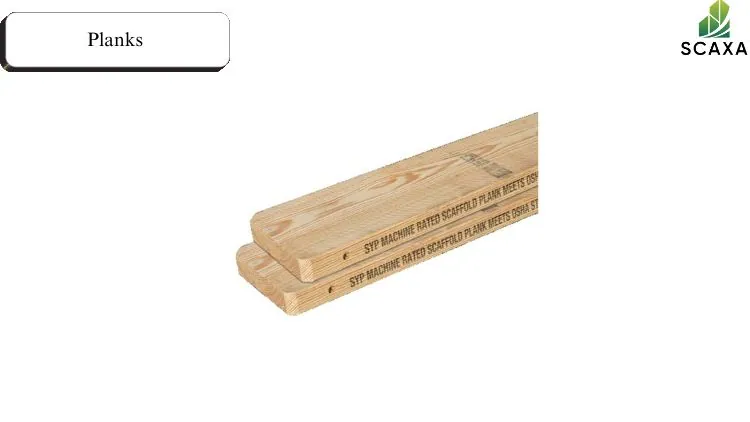

Planks

Planks are horizontal workspaces laid across ledgers or scaffold frames to offer workers a safe and stable platform. They are fundamental components of scaffolding as they allow workers to perform their tasks at elevated heights efficiently. Wooden planks are used in traditional scaffolding structures. They are cost-effective but require regular inspection and maintenance. Metal planks offer superior strength and high resistance to environmental factors but are usually expensive compared to wooden planks. You can also find composite planks in the market. They are made of composite materials like polymer or fiberglass. These planks are non-conductive, highly resistant to corrosion, and lightweight. Planks are designed to support specific weights; for example, light-duty planks support workers only, heavy-duty support workers, tools, and materials, while medium-duty planks provide support to only workers and tools. Planks are integrated with safety features such as reinforced edgers and non-slip surfaces so that the working platform reduces the risk of falls, slips, and trips. The Standard plank length ranges from 2 to 4m while the width is around 225-250mm. Planks offer a stable working platform to workers and provide load support to tools, equipment, and materials.

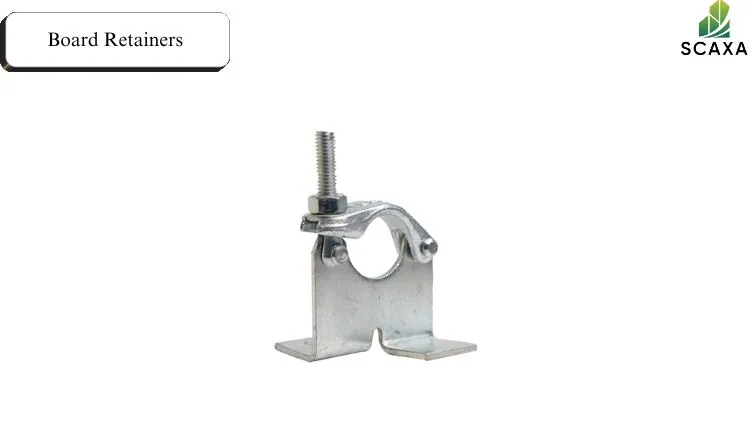

Board Retainers

Board retainers are scaffolding components that keep boards securely in place and prevent them from dislodging, slipping, and tipping during construction and maintenance. Board retainers are safety components of scaffolds as they maintain platform stability and make the workplace safe by reducing tripping hazards. Board retainers are made from durable materials such as high-grade aluminum or steel and resist wear and tear. Some board retainers also have rubber or plastic coating to prevent damage to the scaffold board. Retainers are designed with brackets or clamps that maintain a firm grip on scaffold boards. Adjustable board retainers are compatible with various standard board thickness and scaffold setups. Scaffold board retainers prevent boards from shifting or sliding under harsh weather conditions and loads. They keep boards secure and in place, reducing hazards for workers and pedestrians below the scaffold structure. There are three types of board retainers:

1. The end board retains the secure end of the scaffold and doesn’t let it move alongside the length of the platform.
2. Sideboard retainers are designed for a wide platform. They secure boards in place laterally and protect their shift or movement in high-wind conditions.
3. Adjustable retainers can be adjusted to best-fit boards of different widths or thicknesses.

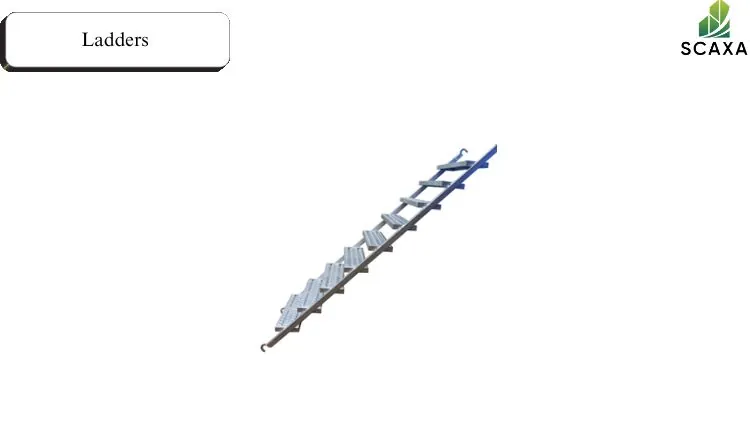

Ladders

Ladders are vertical or inclined structures that offer workers safe access to varied scaffold levels. Here are some minimum standards that scaffold access ladder should meet:

• The top of the ladder should be securely fixed with a scaffold via lashings;
• Ladder access towers outside the scaffold must be erected by self-closing ladder gates or single lift ladders. The purpose is to separate the working platform from access towers;
• When a suitable alternative handrail has not been provided, the ladder should extend at least 1m above the landing point.
• Each ladder stile must get support from a firm and level foundation;
• The ladder should be fixed at an angle of four vertical to 1 horizontal, wherever possible. It provides a sufficient room that workers can use to access and egress via a ladder access opening;
• The 9m is the maximum vertical distance between landings;
• Place guardrails or other safety measures around the opening if the ladder is internal. This placement prevents accidental stepping into the ladder access opening;
• The minimum dimensions of access opening on a platform should be 450mm wide and 60mm long.

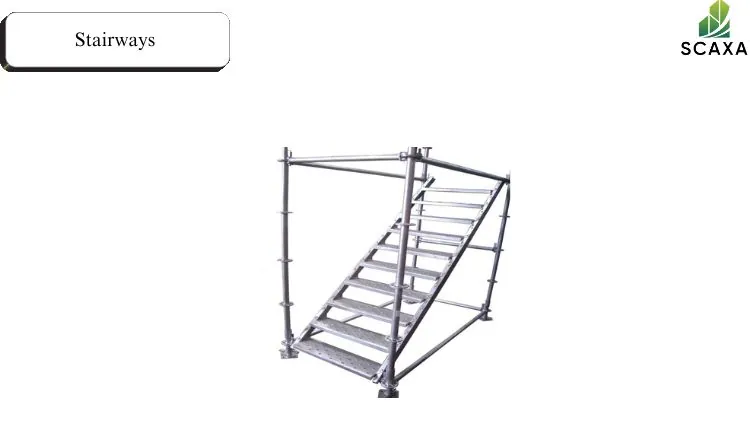

Stairways

Stairways are modular scaffolding components that allow workers easy access to different scaffold levels. They are made of steel or aluminum and feature guardrails and non-slip treads to ensure safety. When you have a multi-story scaffolding system, stairways are required as ladders become insufficient to meet the heavy traffic demand. Stairways also allow workers to carry tools and materials on multi-story or large scaffolds effortlessly.

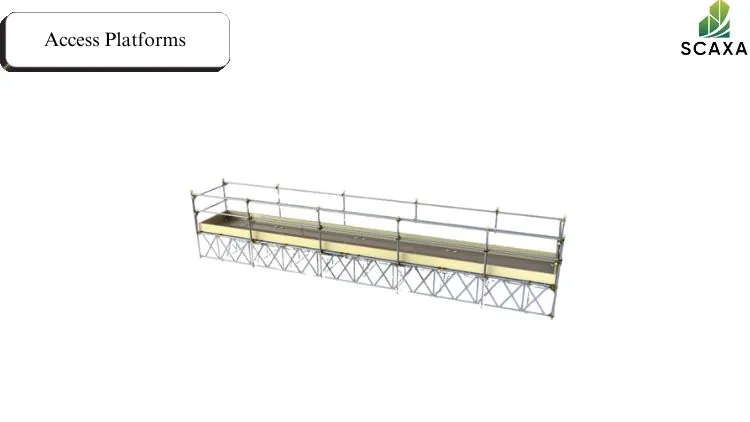

Access Platforms

Access platforms are horizontal scaffold components designed to offer a secure work area. They are built with prefabricated panels or panels and usually have ladders or trap doors for internal scaffold access. Access platforms provide a safe and stable work environment that workers can use to carry tools and materials around during construction, inspection, or maintenance tasks.

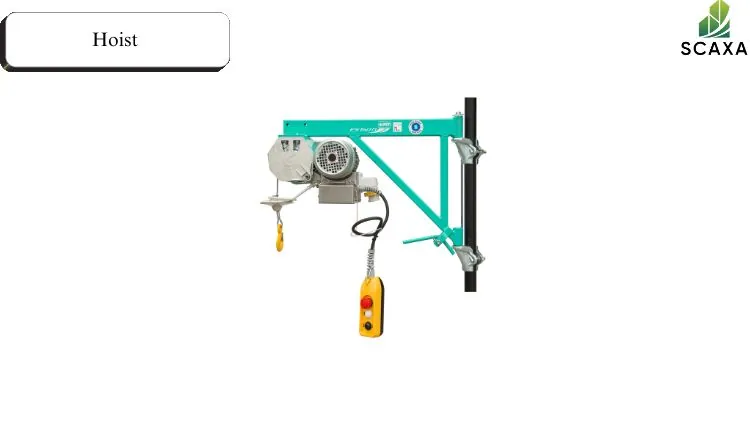

Hoist

A hoist is a powered system that consists of a platform that lifts loads to working heights on scaffolds. A lifting device transports tools, equipment, and material between different scaffold levels. These powered systems are operated hydraulically, manually, or electrically. A hoist improves work efficiency and reduces manual labor on construction sites. When a project is high-rise and involves heavy material, then hoists allow you to lift load easily and minimize the risk of accidents associated with manual load lifting.

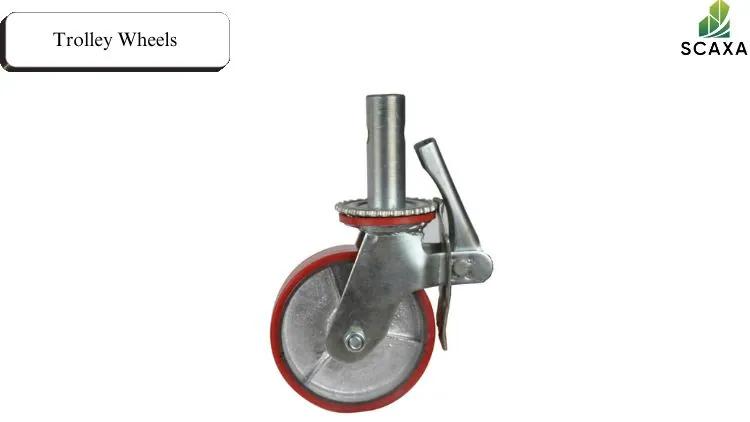

Trolley Wheels

Trolly wheels are castors attached to the base of a mobile scaffolding system. These wheels make moving the scaffold structure from one place to another easy. They are integral components of mobile scaffolds, required for projects where frequent repositioning is crucial. Trolly wheels are made of heavy-duty rubber and steel, so they are durable and offer efficient maneuvering. They also feature locking mechanisms that lock the wheels while workers use the scaffolding structure.

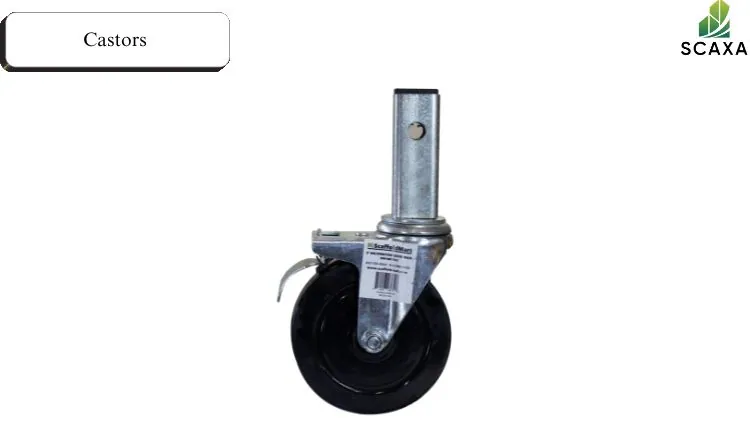

Castors

Castors are scaffold wheels attached to the base of mobile scaffolds. They provide excellent mobility and feature a locking mechanism that keeps the scaffold secure and prevents accidental movement, mainly when workers use a scaffold system.

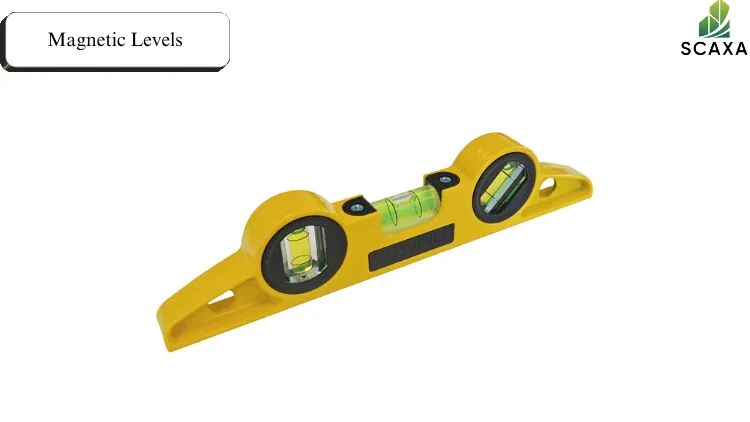

Magnetic Levels

Magnetic levels are precision tools used during scaffolding installation. They feature magnetic strips, so this tool readily attaches to the metal surface and allows you to do hands-free measurements. It’s easy to accurately measure scaffold components to ensure the complete structure is leveled and plumbed. Magnetic levels are helpful in windy conditions as they provide precise scaffold assembly and allow you to comply with safety standards. Some magnetic levels have multiple vials that let you measure in different directions, such as 45 degrees, vertical and horizontal.

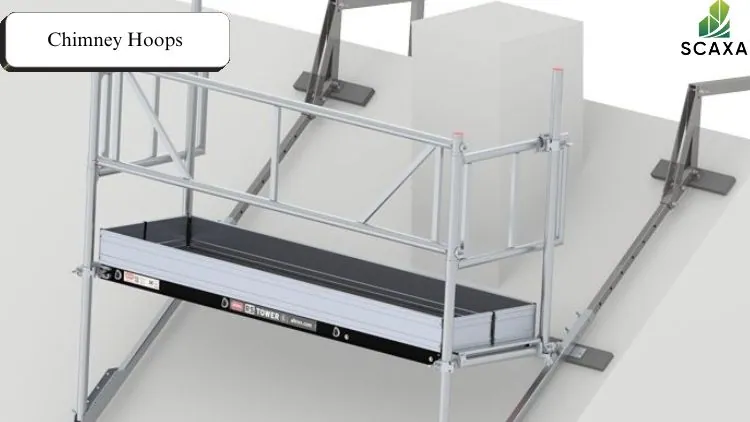

Chimney Hoops

Chimney hoops are specialized scaffold components. They encircle chimneys and offer workers a stable platform for repair or maintenance. Hoops are made from steel and feature adjustable braces to secure them around the chimney quickly. When you need to perform a chimney repair task, you can use chimney hoops that protect the chimney from damage and distribute weight evenly. Chimney hoops are helpful for workers as they can access hard-to-reach areas through these hops and keep workers safe and secure while doing brickwork or flue cleaning.

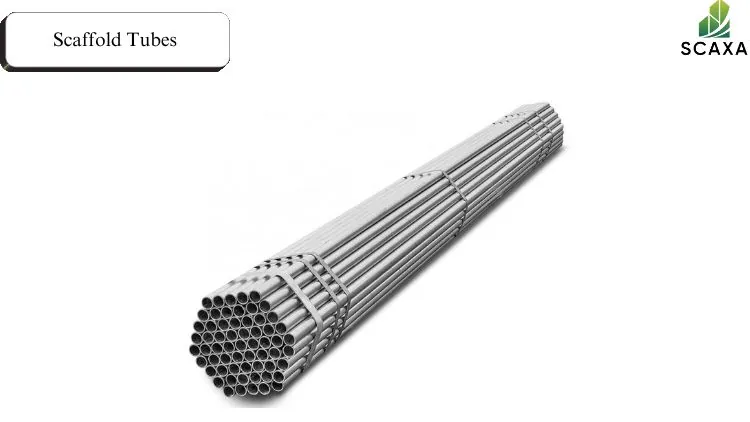

Scaffold Tubes

Scaffold tubes are the primary scaffold component forming the platform and access points framework. Galvanized steel or aluminum is used to create these tubes. These high-quality materials ensure that tubes are highly durable and show excellent corrosion resistance. Couplers are used to connect different scaffold tubes to form a complete framework. The best thing about scaffold tubes is that you can find them in various shapes, lengths, and diameters. You can customize them if you need a scaffold framework to fit specific project requirements.

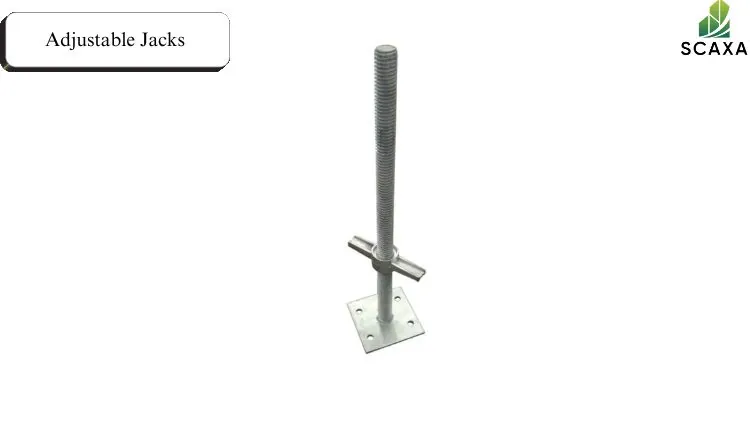

Adjustable Jacks

Adjustable jacks are integral to scaffolding structure when erecting a scaffold on a challenging site. They consist of a base plate and a threaded rod. Other names of adjustable jacks are leveling jacks, scaffolding jacks, and adjustable screw jacks. They are used alongside base plates or wheels. The purpose of the adjustable jack is to adjust the height of the scaffold to maintain overall framework balance. They are crucial to maintaining worker safety and scaffold safety, especially when you need to change the level of a system scaffold to different heights underground.

What are the components of System Scaffolding?

The twelve components of system scaffolding are as follows:

1. Standards
2. Ledgers
3.  Transoms
4. Bracing
5. Base Plates
6.  Platform/Decking
7. Couplers
8.  Toe Boards
9.  Guard Rails
10.  Sole Boards
11.  Clamps
12.  Ties

What are the components of tube and clamp scaffolding?

The eight components of tube and clamp scaffolding are as follows:

1. Standards
2.  Ledgers
3.  Braces
4. Putlogs
5.  Planks/Boarding
6. Rails/Guard Boards
7.  Volts
8.  Couplers

What are the components of aluminium scaffold​ing?

The nineteen components of aluminum scaffolding are as follows:

1. Vertical Tubes (Standards)
2. Horizontal Tubes (Ledgers).
3. Diagonal Braces
4. Transoms
5. Planks (Decks or Platforms)
6. Base Plates
7. Adjustable Screw Jacks (Leveling Jacks)
8. Casters (Wheels)
9. Guardrails
10. Toe Boards
11. Safety Gates
12. Couplers (Clamps)
13. Joint Pins
14. Locking Pins
15. Ladders
16. Stairways
17. Side Brackets
18. Outriggers
19. Stabilizers

What are the components of Cuplock Scaffolding?

The eighteen components of cuplock scaffolding are as follows:

1. Standards (Vertical Tubes)
2. Ledgers (Horizontal Tubes)
3. Base Plates
4. Top Cups
5. Bottom Cups
6. Blades or Spigots
7. Decking Beams
8. Transoms
9. Hop-Up Brackets
10. Base Jacks (Adjustable Jacks)
11. Brace Members (Diagonal Braces)
12. Joint Pins
13. Toe Boards
14. Safety Gates
15. Ladders
16. Stairways
17. Outriggers
18. Casters (Wheels)

What are the components of frame scaffold​ing?

The fourteen components of frame scaffolding are as follows:

1. Frames
2. Cross Braces
3. Base Plates
4. Adjustable Screw Jacks (Leveling Jacks
5. Planks (Decks or Platforms)
6. Guardrails
7. Toe Boards
8. Couplers (Clamps)
9. Outriggers
10. Access Ladders or Stairs
11. Side Brackets
12. Safety Nets
13. Locking Pins
14. Casters (Wheels)

What are the components of Steel scaffold​ing?

The twelve components of steel scaffolding are as follows:

1. Base Plates
2.  Standards
3.  Ledgers
4. Transoms
5.  Bracing
6.  Platform/Decking
7. Couplers
8.  Toe Boards
9. Guard Rails
10. Sole Boards
11. Clamps
12. Ties
